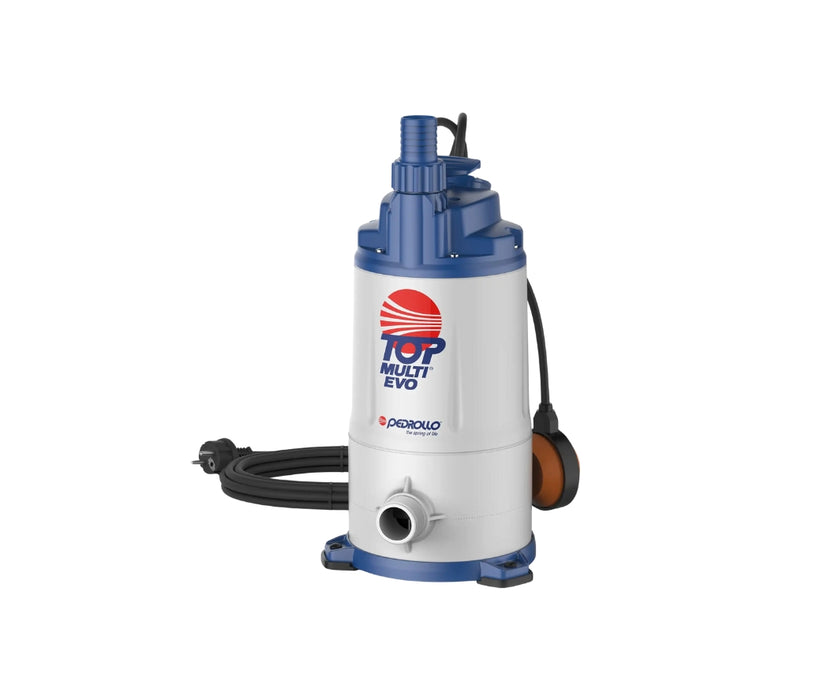

Top Multi-Evo
TOP MULTI-EVO pumps are designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Efficient and reliable, they are ideal for domestic applications involving tanks, reservoirs, and deep wells. They are also perfect for collecting rainwater from water tanks (rain barrels) for manual watering or irrigation systems.
PERFORMANCE RANGE
• Flow rate up to 120 l/min (7.2 m³/h)
• Head up to 52 m
APPLICATION LIMITS
• Maximum operating depth below water level:
– up to 3 m for TOP MULTI 1-EVO
– up to 10 m for TOP MULTI 2-3-4-5 EVO (with an appropriately sized power cable)
• Liquid temperature up to +40 °C
• Draining capability:
– up to 25 mm from the bottom for TOP MULTI 1-EVO
– up to 35 mm from the bottom for TOP MULTI 2-3-4-5 EVO
• Manometric suction head up to 7 m
INCLUDES
• 10 m power cable
• Float switch
• Hose connector Ø 35 mm
• Complete sleeve with clapet valve
