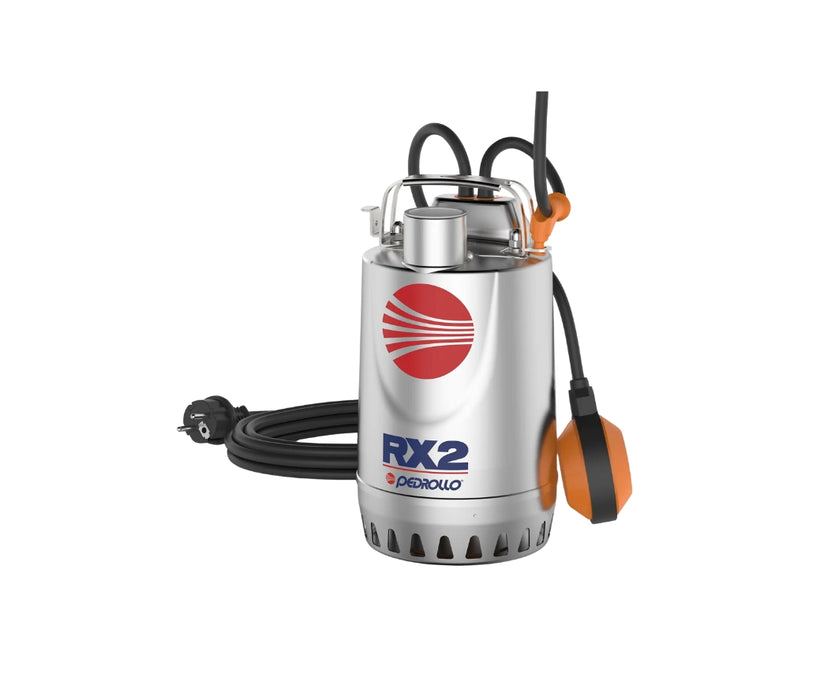

RXM
RX pumps are designed for efficiently draining clear water without abrasive particles. Their design ensures user-friendly operation and safe performance, thanks to complete motor cooling and a double shaft seal. Ideal for home and public applications, these pumps are perfect for permanent setups, quickly handling emergency situations like small floods in rooms, basements, and garages. They're also great for managing household wastewater from dishwashers and washing machines, as well as for sump emptying.

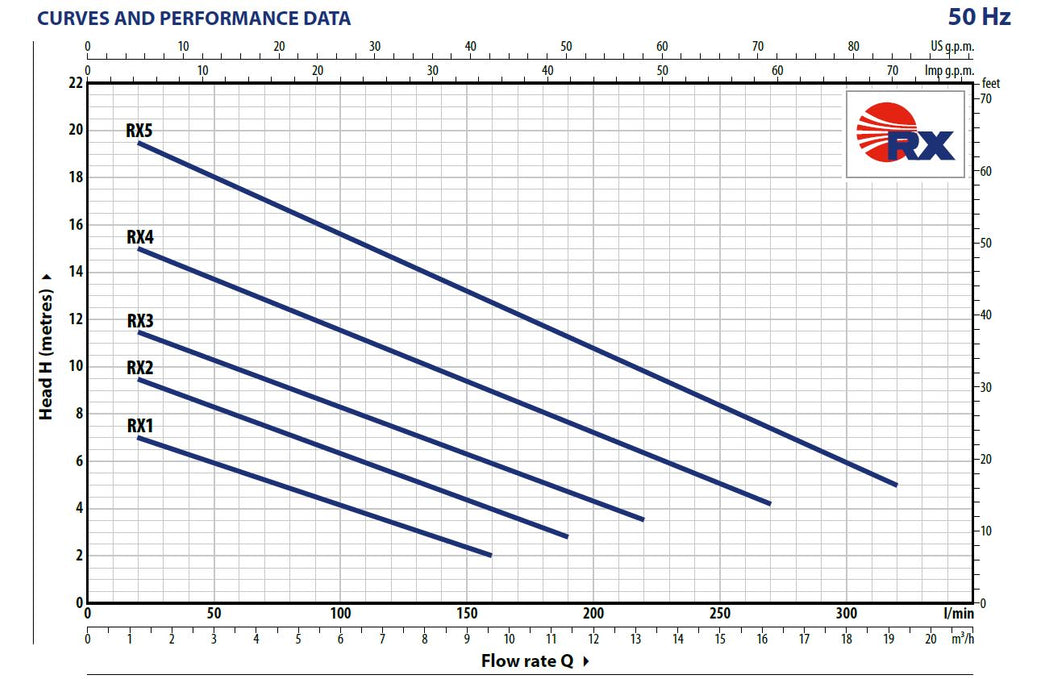

PERFORMANCE RANGE
• Flow rate up to 320 l/min (19.2 m3/h)
• Head up to 20.5 m
APPLICATION LIMITS
• Maximum operating depth below water level up to 10 m (with an appropriately sized power cable)
• Liquid temperature up to +50 °C and up to +90 °C for short bursts (up to 3 minutes max) for intermittent service
• Capable of processing suspended solids up to Ø 10 mm
• Draining capability:
– up to 14 mm from the bottom for RX 1-2-3
– up to 25 mm from the bottom for RX 4-5
INCLUDES
• 5 m power cable
• Float switch for single-phase versions
