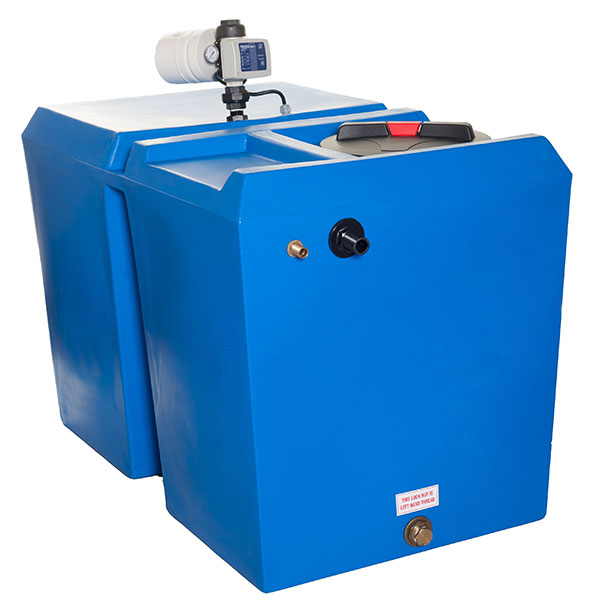

Multiboost Rectangular

The Multiboost Rectangular 300L and 500L are designed for houses and apartments with low mains water pressure and where pressure fluctuates. It is electronically controlled through a flow switch unit which starts and stops the pump automatically when the tap is opened and closed. The Rectangular system is designed for areas where height restrictions are an issue.

Features:

• Non-corrosive holding tank (WRAS approved material)
• Manual adjustable start-up pressure function
• Dry run protection with auto restart (time delay)
• 2 L water accumulator tank
• 16 amp rated controller with pressure gauge as standard
• 3 piece union on outlet (for easy maintenance for crimp piping)

 Connections:

• Inlet: ½” BSP
• Outlet: 1” BSP
• Overflow: 1” BSP
• Drain Off: 1" BSP

*Bypass unit recommended to be fitted on inlet supply.
